Ammattitason 3d-tulostin. Ammattitason 3d-tulostin. Toteuta vaikuttavat tulokset Raise3D Pro2 Plus Dual Extruder 3D -tulostimella. Raise3D tarkoittaa korkealaatuisten, luotettavien ja edullisten valmistuskoneiden tuotantoa. Tämän 3D-tulostimen avulla voit tuottaa pieniä sarjoja ja prototyyppejä.
Tuotteet sijaitsevat omassa varastossa Suomessa.
Ilmainen toimitus yli 100€ ostoksille
Ennen klo 14 tehdyt tilaukset lähetetään saman päivän aikana

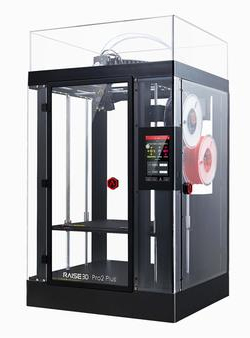

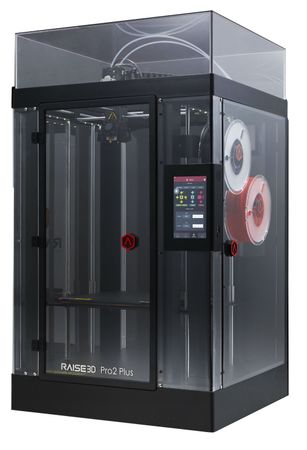

Raise3D stands for development of high-quality, reliable and affordable 3D printers. Realize components in convincing quality with this Raise3D Pro2 Plus Dual Extruder 3D printer. Furthermore, you can use this 3D printer to produce small series and prototypes quickly and inexpensively. In contrast to the Pro2, the Plus variant offers a higher building height by 30 cm in the Z direction – now 60,5 cm high. Enter now into the professional Additive Manufacturing.
You will be impressed by the Raise3D Pro2 Plus. Your 3D prints are impractical, complicated and the finished parts are of inferior quality? That was yesterday. The Raise3D Pro2 Plus convinces with many smart functions. There are currently very few 3D printers on the market that combine all the crucial functions in one device. And if so, then these devices are many times more expensive than the Raise3D Pro2 Plus.
This 3D printer can be easily operated through its 7-inch color touch display. Surely you can use your smartphone? If so, you can handle the interface of the Raise3D Plus. By using the simple controls, you have your 3D printer always under control. Bring your digital masterpieces to life now.
Thanks to its enormous space, you can also produce very large objects and prototypes. Your components can reach an edge length of 305 x 305 x 605 mm. On top of that, the building chamber of this 3D printer is fully enclosed. This allows you to process more sophisticated materials such as ABS, HIPS, PET-G, PLA+, PP and ASA. Heat the build platform up to 110 ° C and the extruder up to 300 ° C. Realize your creative ideas now.
Raise3D Pro2 Plus offers an open system and can work with a variety of materials from most third-party manufacturers. The filaments only require a 1.75 mm diameter. Determine which filament from which supplier you use.

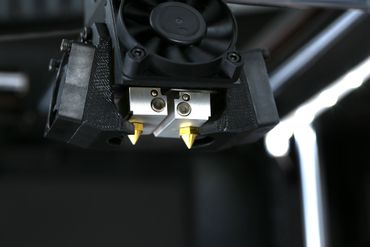

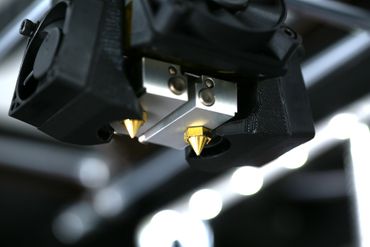

Thanks to the dual-extruder, you can make objects from two different filaments, materials or with support material. If you process PVA or HIPS filament in the second extruder, you can realize very complex components with overhangs. Simply dissolve the support filament after the finished 3D printing and you will get a convincing result.

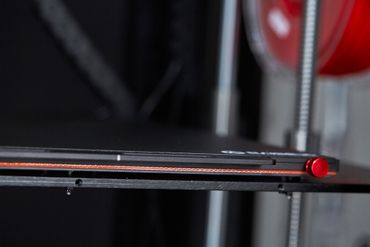

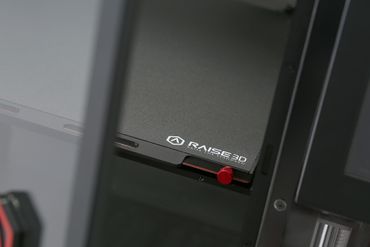

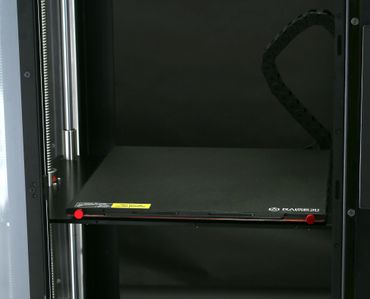

Now the Raise3D Pro2 Plus works with a new heating bed made of silicone. This increases the adhesion of your components on the build platform. The substrate of the construction platform consists of a magnetic aluminum profile. This is equipped with an improved 4 + 9 points lock system.

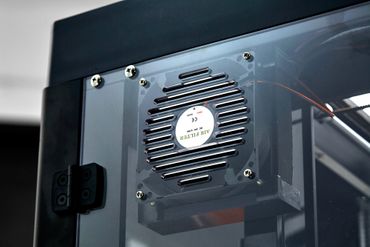

Clean air is important to us all. This is true even if we talk about 3D printers. With the Raise3D Pro2 Plus, the air in your environment remains clean and free of harmful substances. The integrated air filter cleans the exhaust air.
The Raise3D Pro2 Plus allows you to produce at high production speed and a superior 3D printing quality. In the Z direction, very high resolution of up to 0.01 mm layer thickness can be achieved. Make fine structures and very smooth surfaces. The best way to work only with small objects with such a high resolution. Otherwise the construction time will be greatly increased.
Buy the Raise3D Pro2 Plus to get an affordable extra large volume FFF / FDM dual extruder 3D printer.
Construction an Technical Details | |
Usable Nozzle Typ | Raise3D Pro2 |
Usable Filament Diameter | 1,75 mm |
Nozzle Temperatur Max | 300 °C |
Open Filament System | Yes |
Extruder Typ | direct drive |
Printing Speed Max | 150 mm/s (depends on material) |
Build Area | 305 mm x 305 mm x 605 mm |
Dual Build Area | 303 mm x 280 mm x 605 mm |
Heated Build Plate | Yes |
Build Plate Temperature Max | 110 ºC |
Build Plate Surface | BuildTak |
Build Plate Material | Aluminum plate |
Build Plate Attachment | magnetic /screws |
Build Plate Leveling System | Pre-calibrated - manual Leveling |
Build Chamber During Process | Open or Closed |
Filament Chamber Closed | Yes |
Extruder Number | 2 |
Extruder Construction Typ Dual | Dual-head with electronic lifting system |
Installation Space / Requirements | |
Total Mass | 590 mm x 620 mm x 1105 mm |
Total Weight | 59,3 kg |
Operating Ambient Temperature | 15°C - 30°C |
Power Consumption Max | 600 W |
Voltage | AC: 100 V, 3,3 A / 230 V (50/60 Hz) |
Equipment | |
Hepa Filter | Yes |
Filament Runout Sensor | Yes |
Powerloss Fail Safe | Yes |
TouchScreen | Yes |
Camera | Yes |
Memory Internal | Yes |
Memory Capacity | 8 |
Connection | |
USB | Yes, 2 x USB-A |
Ethernet-Port | Yes |
WLAN | Yes |
Cloud Control | Yes |
Accuracy | |
Layer Height | 0,01 mm - mm |
Shipping | |
Shipping Box | 690 mm x 730 mm x mm |
Shipping Weight | 79,6 kg |
Tuotemerkki | Raise 3D |
